Pancake Stepper Motor
Created with Pixso.

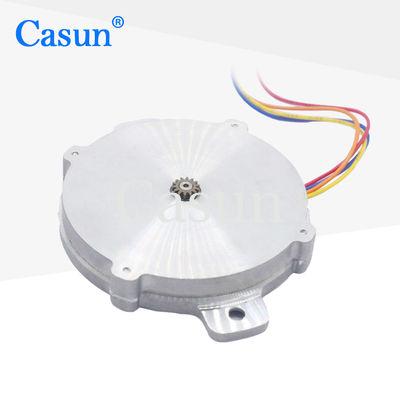

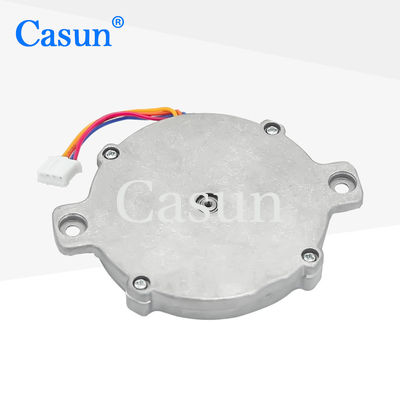

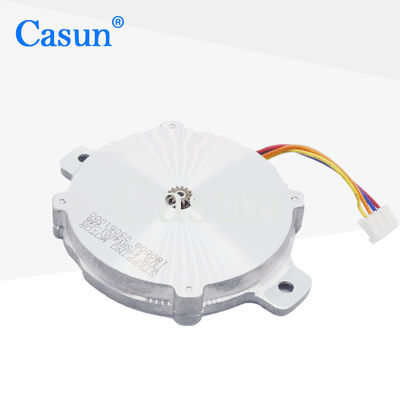

57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor

name

57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor

Brand Name: Casun
Model Number: 57SHY4001-2A6
MOQ: 1PC
Price: $12.3-13.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Pancake Nema 23 Stepper

,

57mm Pancake Nema 23

,

Pancake 500V DC Stepper Motor

Product Description

NEMA23 57mm Pancake Cctv Motor Stepper 1.8degree Round 500 Vdc Stepper Motor


The  Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor 0







Motor Specifications



Step Angel



1.8 °

Fram Size



57mm

Number of Phase



2 Phase

Rated Current



0.8A

Holding Torque



60 mN.m

Resistance



3.5om

Inductance



1.8mH

Rotor Inertia



15 g-cm²

Motor weight



75 g

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves





Submodels



Model Motor Length Current Holding Torque
P28SHD4611 9.5mm 0.5A 16mN.m
P28SHD4701 10.6mm 0.5A 20mN.m
P28SHD4750 13-15mm 0.5A 25mN.m
P28SHD4950 17.9mm 0.5A 35mN.m


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor 1 57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor 2 57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor 3 57mm Pancake Nema 23 Stepper Cctv Round 500V DC Stepper Motor 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

Nema 23 Flat Stepper Motor

Casun Nema 23 Flat Stepper

Casun Flat Stepper Motor High Torque
