Home > products > Hybrid Stepper Motor > 12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

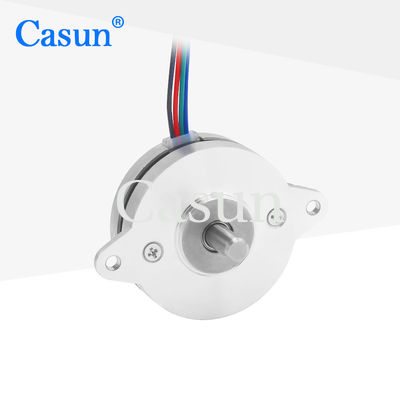

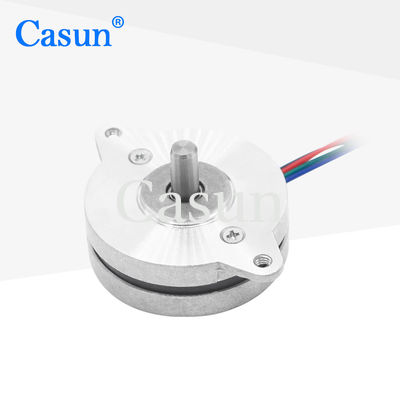

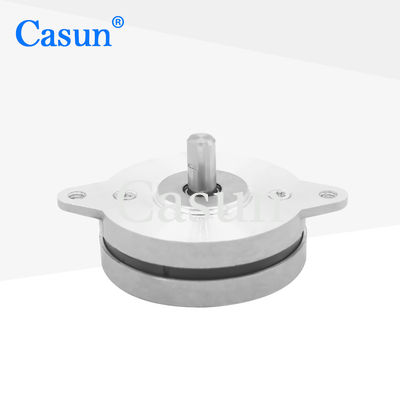

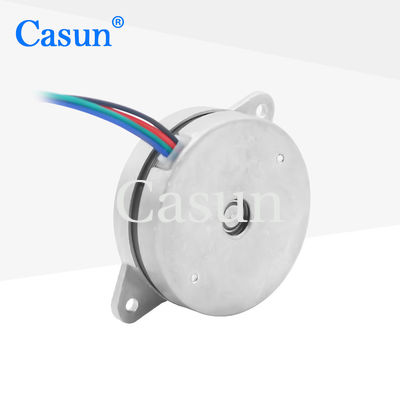

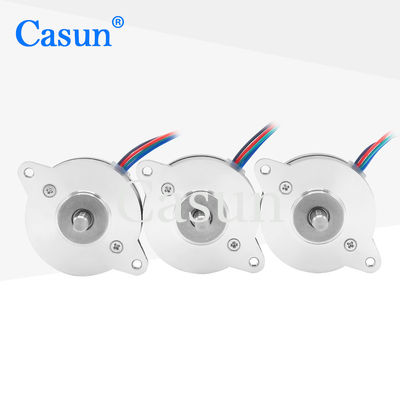

12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor
12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 36SHD4001-11B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

12.5mm 22mNm Nema 14 Stepper

,

12.5mm 2 Phase Hybrid Stepper Motor

,

22 mNm 2 Phase Hybrid Stepper Motor

Step Angel:
1.8°
Holding Torque:
22mN.m
Current:
0.3A
Motor Length:
12.5mm
Shaft:
Milling Flat Shaft 11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
22mN.m
Current:
0.3A
Motor Length:
12.5mm
Shaft:
Milling Flat Shaft 11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

【36SHD4001】2 Phase 1.8 deg Nema 14 Stepping Motor Ultrathin 12.5mm body for Remote Control PTZ

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

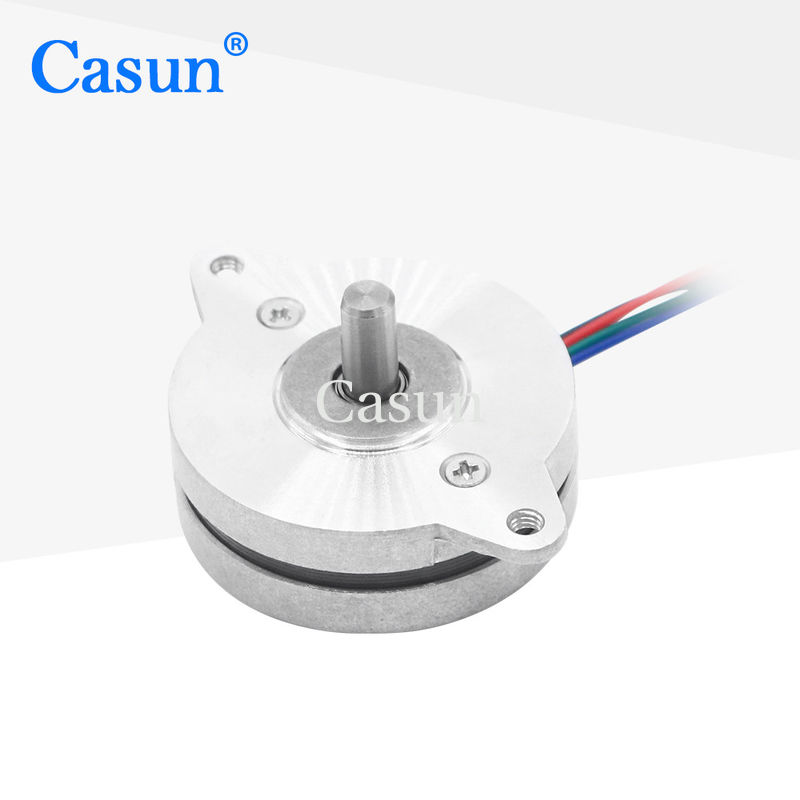

Appearance



12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor 0

Dimensions

12.5mm 22mNm Nema 14 Stepper 2 Phase Hybrid Stepper Motor 1



Motor Specifications

Step Angel

1.8 °

Fram Size

36 mm

Number of Phase

2 Phase

Rated Current

0.3 A

Holding Torque

22 mN.m

Resistance

20 ohm

Inductance

6.8 mH

Rotor Inertia

4 g-cm²

Motor weight

0.06 kg

Number of leads

4

Connection

Bipolar









Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.












Tags:

2 Phase Bipolar Stepper Motor,

Nema 6 Bipolar Stepper Motor,

12.5mm 22mNm Nema 14 Stepper
